ALL-NEW MOHOC® 2
SITUATIONAL AWARENESS AT THE TACTICAL EDGE
MOHOC believes the world’s toughest warfighters deserve equipment worthy of their missions. Responding to the evolving needs of the Hyper-Enabled Operator and Integrated Tactical Network, the MOHOC® 2 Camera delivers real-time video streaming over handheld radios.
- Mil-Spec Ports & Cables
- Plug-and-Play Radio Integration
- 20x Improved Low-Light Sensitivity

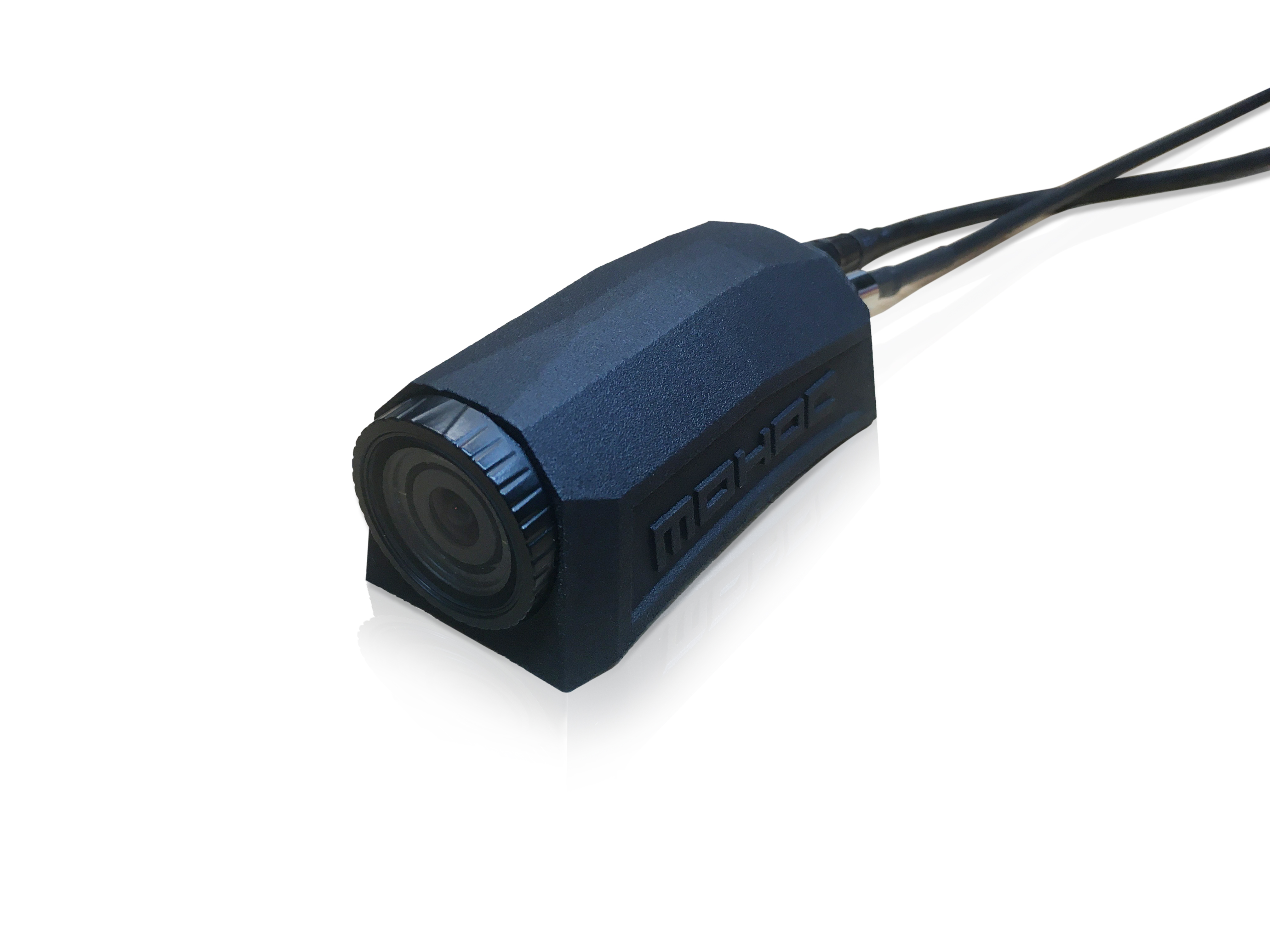

The camera is smaller, lighter, and simpler to operate than the original MOHOC®, but with the same revolutionary low-profile, helmet-contoured form factor and military-grade ruggedization.
A radically improved sensor offers incredible low-light and infrared capability, combining the benefits of day and IR cameras into a single model.
Designed as a customizable platform, MOHOC® 2 can be tailored to match many C5ISR requirements.
When ordering, simply indicate the intended radio, video protocol, and connection port, and MOHOC® 2 will be built to your specification in the USA.*
*Minimum quantities and lead-times may apply
USB, WIFI, HDMI, and H.265 streaming currently in development. MOHOC® 2 is customizable for different rear port/connector/pin assignments to meet different comms specifications. Please contact MOHOC for further information.
|DIMENSIONS||80mm long x 41mm wide x 32mm tall|
|IMAGE SENSOR||1/2.8” back illuminated CMOS (for ultra-low light)|
|MIN. ILLUMINATION||0.01Lux @ F2.5 – 30IRE, 0.0003 (DSS on) in visible light and near infrared|
|OPTICS/LENS||Aperture F2.0, 120º Field of View|
|SCANNING SYSTEM||Progressive Scan|
|ELECTRONIC SHUTTER||50Hz : 1/25~25,600sec 60Hz : 1/30~1/30,000sec|
|DURABILITY||2m (6.5ft) drop test|
|WATERPROOF||IP68 (10m for 30min)|
|POWER REQUIREMENT||DC external power source|
|LOW LIGHT||Auto adjustment for optimal recording in low light environments|
|ROTATING LENS||Manually rotate lens up to 190º to record horizontal video from any mounting position|
|SECURE ATTACHMENT||CurvelockTM base designed to match helmet curvature, provides unprecedented low-profile, secure attachment via Velcro® direct to helmet or helmet cover.|
|IMAGE SETTINGS/CONTROL||Day & Night Mode(Auto/Color/B&W), Auto Gain Control, DSS, WDR, DNR, BLC, Auto Exposure,
Image Effect (Gamma/Defog/Privacy/Motion Detection)
|OPERATING TEMP.||14ºF~131ºF (-10ºC~+55ºC)|
SDI VIDEO STREAMING SPECIFICATIONS
|3G-SDI STREAM||1080p25/30/50/60, 720p25/30, 720p50/60, 1080i50/60|
|ON SCREEN DISPLAY||Available Via OSD Switch & Serial Port|
|POWER CONSUMPTION||DC5~18V, 140mA@12V with 3G-SD|
|COMMUNICATION||Yes (RS485 ) // RX only|
