MOHOC® Optac™
DRONE CAMERAS
Leveraging MOHOC’s proven imaging dominance in tactical helmet cameras, MOHOC® Optac™ redefines the visual edge in FPV drone optics. Engineered for decisive clarity in all light conditions, including the IR capable with a removable IR filter cap, Optac™ delivers video precision and ultra-low latency across dynamic mission profiles. Detect, acquire, track, and lock targets all while meeting NDAA, SWaP, and cost objectives essential to attritable and one-way effect platforms.
FIND, FIX AND FINISH
- Daylight, low-light, and the optional infrared video in a single camera purpose built for attack UAV
- Exceptional glass-to-glass latency for rapid engagement decisions
- Ruggedized for launched effect environments with patent-pending, snag-free form factor
- Removable IR filter cap for night operations (Optac™ A-NF)
SECURE, SUPPLY AND SCALE
- NDAA compliant and audited components
- Exceptional glass-to-glass latency for rapid engagement decisions
- Plug-and-play FPV drone integration, optimized for SWaP constraints
- Seamless CVBS video integration with analog VTX systems

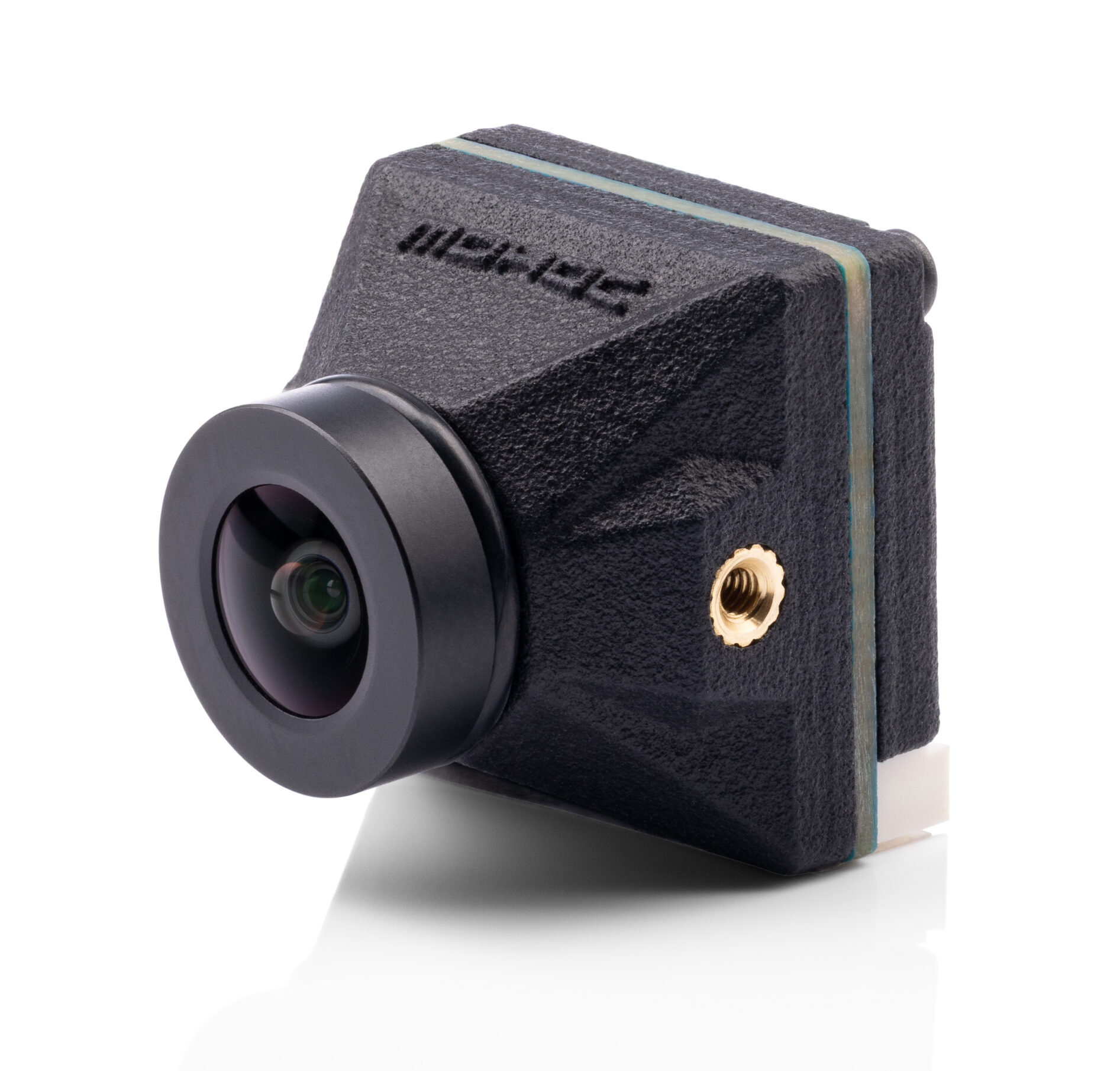

MOHOC® Optac™ A-VIS
MOHOC® Optac™ A-NF
GENERAL SPECIFICATIONS FOR Optac™ cameras (A-VIS & A-NF):
| DIMENSIONS (L x W x H) | 22mm x 22mm x 22mm |
| WEIGHT | 18g (0.63oz) |
| IMAGE SENSOR | 1/2.8 CMOS, .0005 LUX ultra-low light sensitivity |
| OUTPUT VIDEO INTERFACE | CVBS |
| OSD | Joystick control |
| LENS | f/2.0 |
| ASPECT RATIO | CVBS 16:9 or 4:3 adjustable |
| FOV | 4:3 ratio – 85H/60V/104D or 16:9 ratio – 100H/60V/117D |
| RESOLUTION | Analog: CVBS (960×576/PAL, 960×480/NTSC) |
| FPS | CVBS @30/25 fps (NTSC/PAL) |
| POWER SOURCE | DC5V, Max. 280mA@DC5V (1.4W) |
| CONNECTION INTERFACE | 5pin Molex 1.25mm |
| LOW LIGHT | Auto adjustment for optimal recording in low light environments |
| CAMERA UAV MOUNTING | M2 screws |
