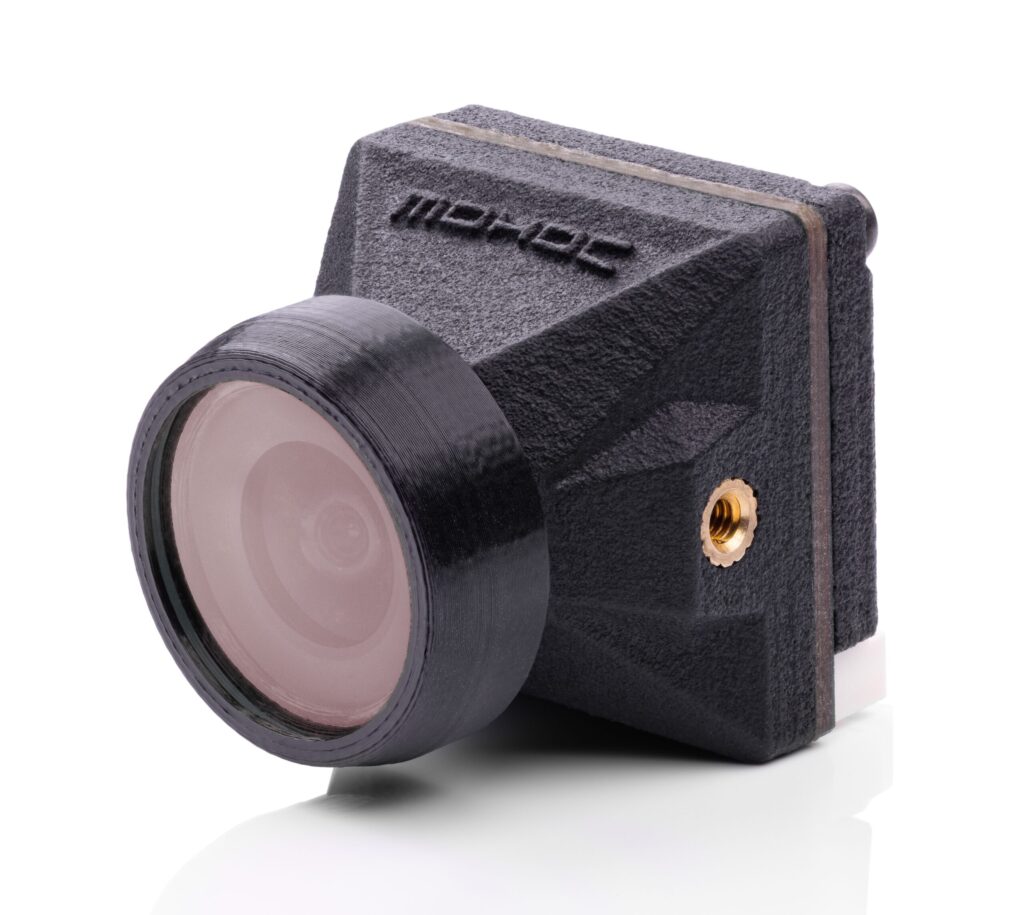

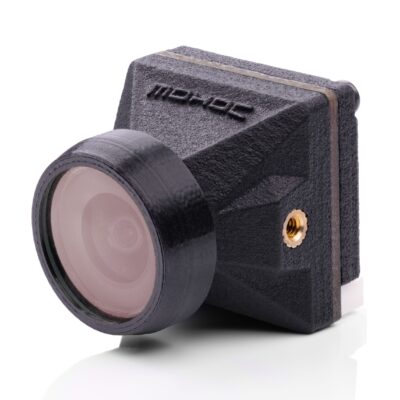

Optac™ A-NF

IR CAPABLE.  Built for Drone Dominance.

  • Captures 400–950nm visible & IR spectrum
  • Outputs color video in daylight with IR filter cap installed
  • Outputs black-and-white video at night with IR filter cap removed
  • Optimized for night conditions maximized when used with external IR illumination

Leveraging MOHOC’s proven imaging dominance in tactical helmet cameras, MOHOC® Optac™ redefines the visual edge in FPV drone optics. Engineered for decisive clarity in all light conditions with a removable IR filter cap, Optac™ A-NF delivers video precision and ultra-low latency across dynamic mission profiles.



Request Quote

Optac™ Spec Sheet



SKU: MD1A.NF Category:

Optac™ A-NF

TECHNICAL SPECIFICATIONS



LIGHT TRANSMISSION A-NF: 400-950nm
IR FILTER CAP Outputs color video in daylight when installed

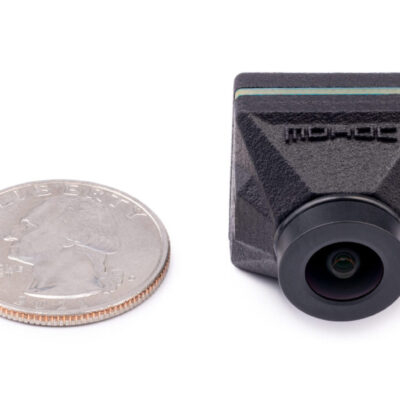

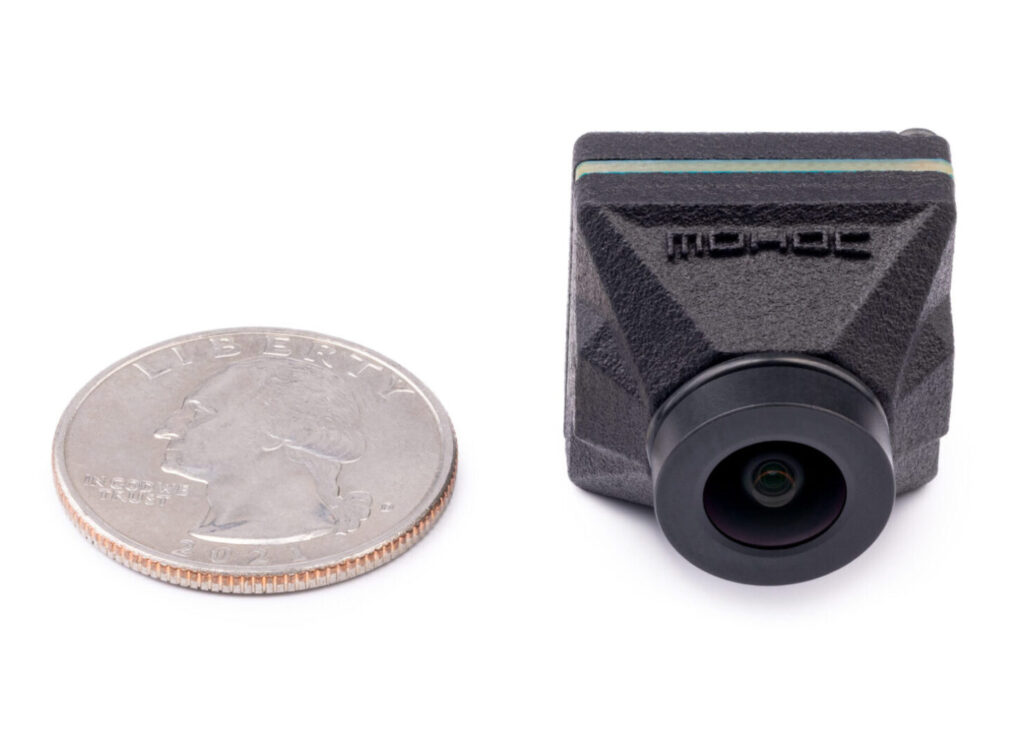

DIMENSIONS (L x W x H) 22mm x 22mm x 22mm
WEIGHT 18g (0.63oz)
IMAGE SENSOR 1/2.8 CMOS, .0005 LUX ultra-low light sensitivity
OUTPUT VIDEO INTERFACE CVBS
OSD Joystick control
LENS f/2.0
ASPECT RATIO CVBS 16:9 or 4:3 adjustable
FOV 4:3 ratio – 85H/60V/104D or 16:9 ratio – 100H/60V/117D
RESOLUTION Analog: CVBS (960×576/PAL, 960×480/NTSC)
FPS CVBS @30/25 fps (NTSC/PAL)
POWER SOURCE DC5V, Max. 280mA@DC5V (1.4W)
LOW LIGHT Auto adjustment for optimal recording in low light environments

Patents & Trademark Pending

Optac™ A-VIS SPECIFICATIONS

LIGHT TRANSMISSION: A-NF 400-950nm
DIMENSIONS (L x W x H): 22mm x 22mm x 22mm
WEIGHT:18g (0.63oz)

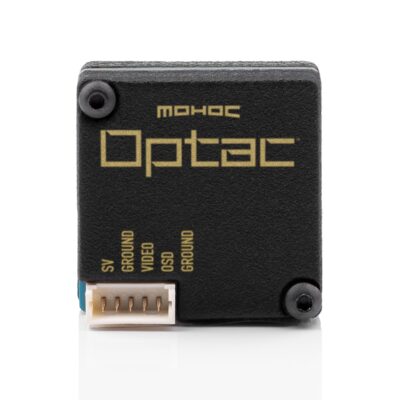

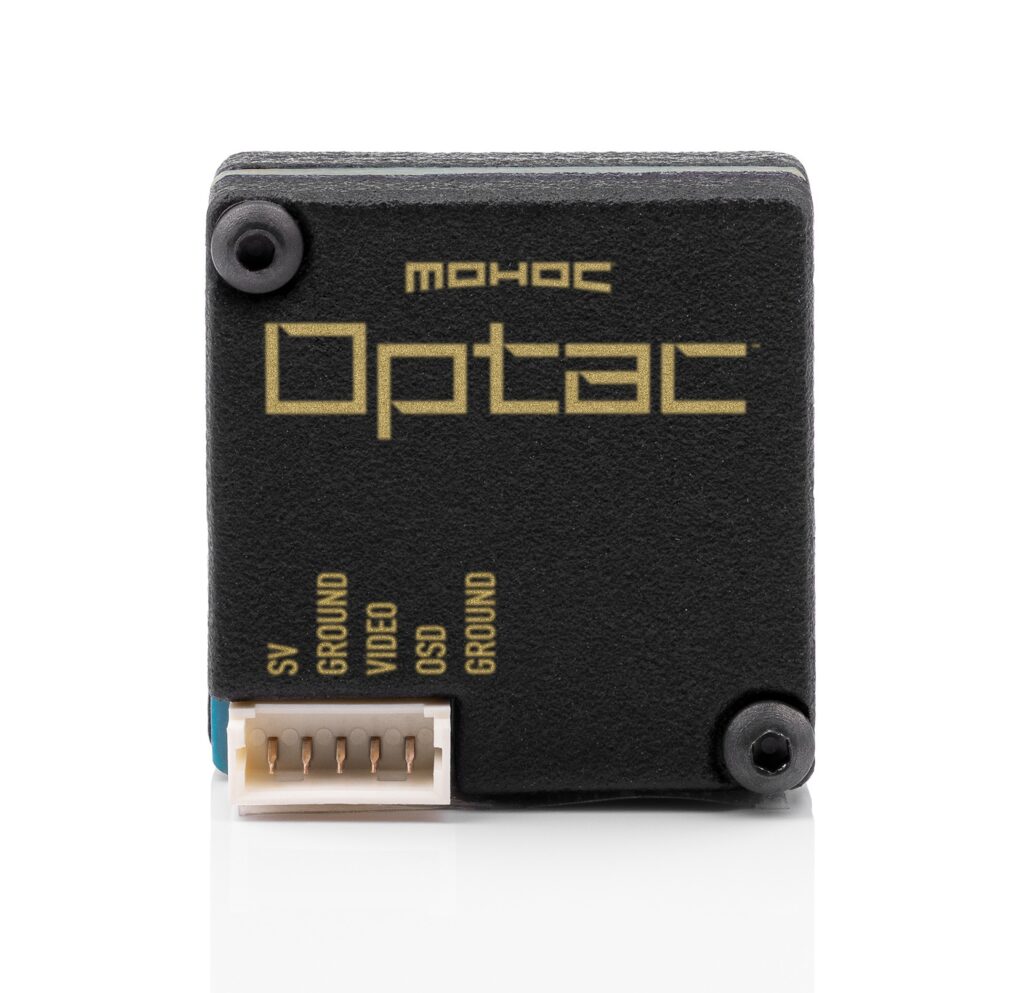

CONNECTION INTERFACE: 5pin MOLEX 1.25mm

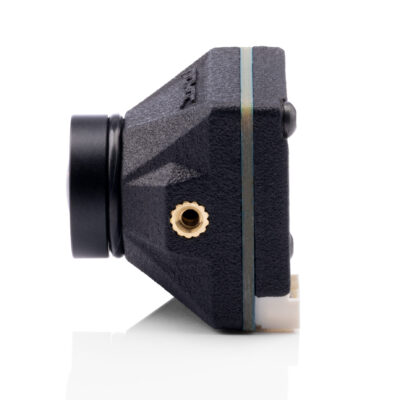

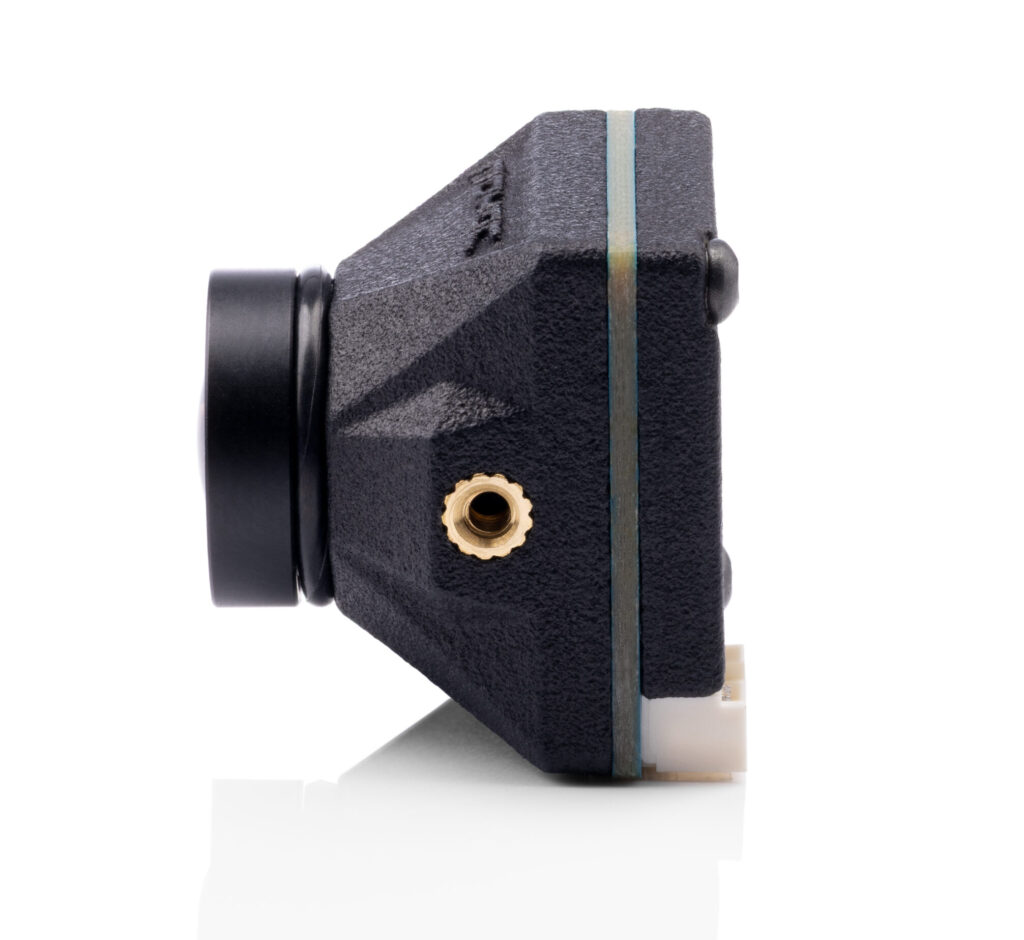

CAMERA UAV MOUNTING: M2 screws

MOHOC® Optac™ A-NF Spec Sheet

(1) MOHOC® Optac™ A-NF Camera

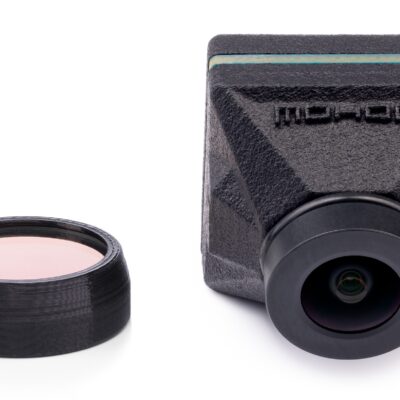

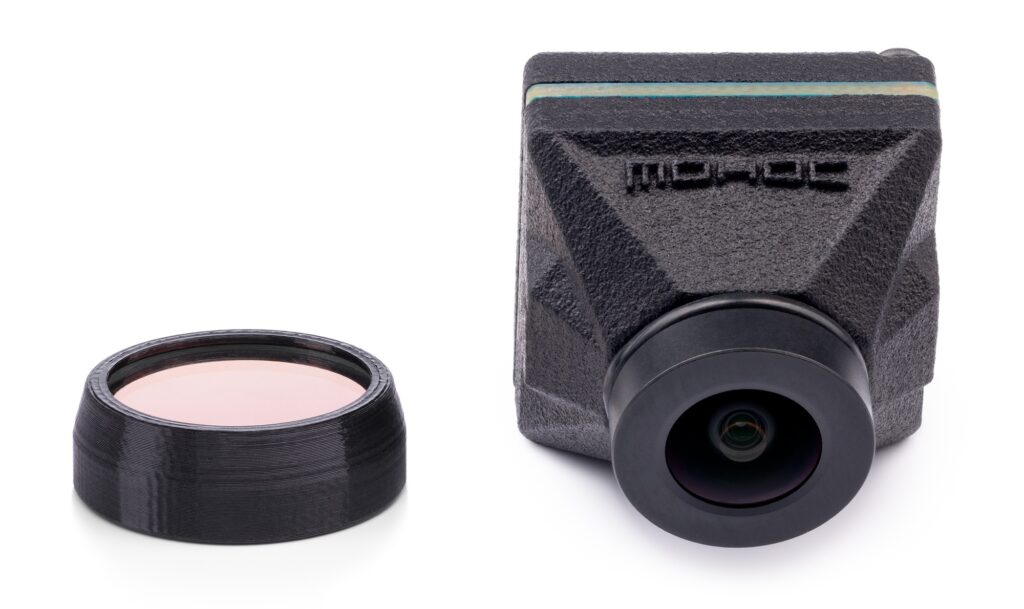

(1) Optac™ NF IR Cap
