MOHOC® 2 IP

$999.00

ALL-NEW MOHOC® 2 IP
SITUALTIONAL AWARENESS AT THE TACTICAL EDGE

Designed as a customizable platform, MOHOC® 2 can be tailored to match many C6ISR requirements.  The MOHOC® 2 IP Camera is built to stream real-time video over mobile ad hoc networking (MANET) radios. Created as a live sensor for the hyper-enabled operator, it maximizes situational awareness at the tactical edge.

The MOHOC® 2 IP outputs IP video compatible with radios and networks that accept IP video.

•Plug-and-Play Radio Integration- connects directly to IP based radios and networks via Ethernet cable (RJ45)                                   •20x Improved Low-Light Sensitivity
•MIL Spec cables and ports – customized cables and connectors available on request to integrate directly to different radio or network requirements                                                                            •Outputs 3 different video streams that are customizable (2 x h.264, 1 x MJPEG)

All MOHOC® 2 cameras are available for purchase in Black, Tan, and MIL Green.

MOHOC® 2 cameras are built to order, so estimated lead time is 30 days after receipt of order.  MOHOC Customer Service will be in touch after your order to confirm color, connected device compatibility, and estimated lead time.

MOHOC 2 IP Spec Sheet

SKU: MH2IP Category:


ALL-NEW MOHOC® 2 IP
SITUALTIONAL AWARENESS AT THE TACTICAL EDGE

OUTPUT 2 x H.264, 1 x MJPEG
RESOLUTION 1920×1080, 1280×720, 800×600, 704×480, 704×400, 640×480, 640×360, 320×240
FPS 30, 15, 10, 6, 5, 3, 2, 1fps (60hz) or 25, 12, 8, 5, 1fps (50hz)
BITRATE 1~20Mbit (6Mbit)
BITRATE CONTROL Off, VBR, CBR
STREAM OPTIONS RTSP address for 1st/2nd H.264 and MJPEG Stream
NETWORK PROTOCOL TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS, Onvif
ON SCREEN DISPLAY Available Via Web Browser
POWER CONSUMPTION DC6~18V, Max.130mA@DC12V





IP VIDEO GENERAL SPECIFICATIONS

IMAGE SENSOR 1/2.8” Color CMOS (back illuminated pixels for ultra-low light)
MIN. ILLUMINATION 0.006Lux @F2.0, 0.0002(DSS on) in visible light
OPTICS/LENS Aperture F2.0, 120º Field of View
SCANNING SYSTEM Progressive Scan
ELECTRONIC SHUTTER 50Hz : 1/25~25,600sec 60Hz : 1/30~1/30,000sec
DURABILITY IP50 standard connectors, IP68 connectors optional

US Pat no. 10,802,379
MOHOC 2 IP Spec Sheet

(1) MOHOC® 2 IP Camera

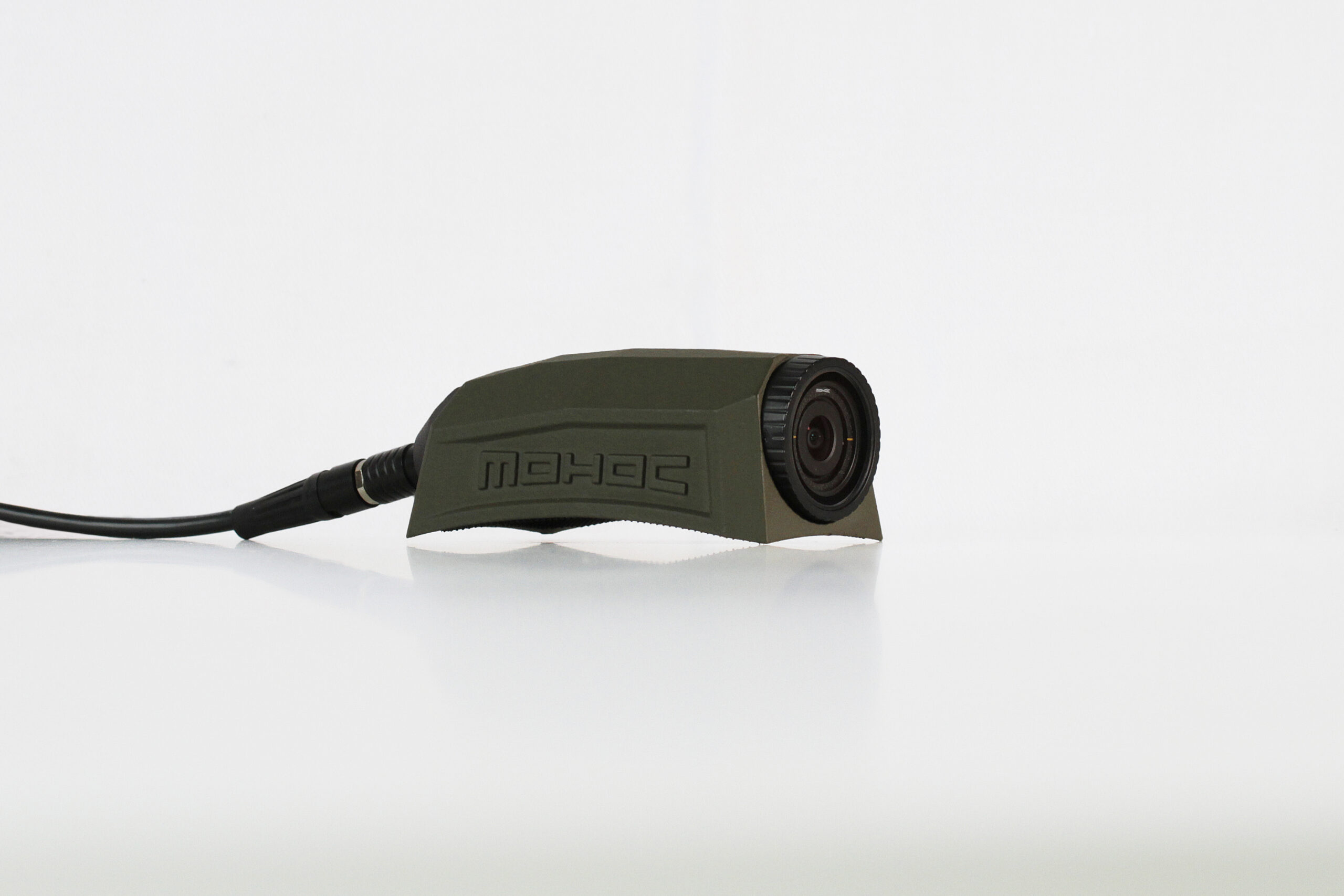

(1) Power/Data cable with RJ45 (Ethernet Connector) for data and DC connector for power
(2) Industrial Strength Black VELCRO® Brand Loop Strips
(1) Camera bag
