MOHOC® 2 USB-UVC

$999.00

ALL-NEW MOHOC® 2 USB-UVC
SITUALTIONAL AWARENESS AT THE TACTICAL EDGE

The MOHOC® 2 (USB-UVC model) is built for radios that accept USB-UVC video and power/data hubs such as Glenair STAR-PAN™.

•Plug-and-Play Radio Integration- connects directly to power/data hubs such as Glenair STAR-PAN™
•20x Improved Low-Light Sensitivity

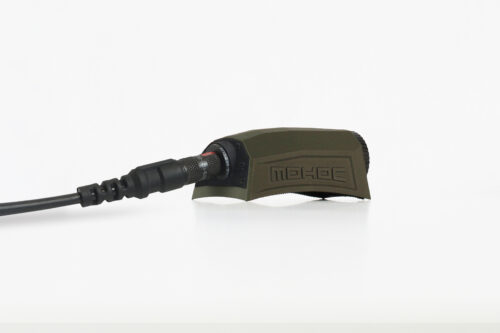

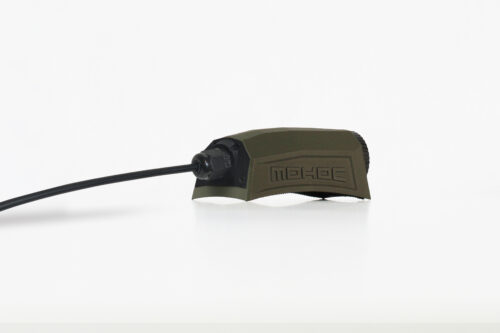

•MIL Spec cables and ports – available as a fixed standard USB cable tail that ends in a Male USB Type A or as a Glenair 807 6 Pin Male out the camera back

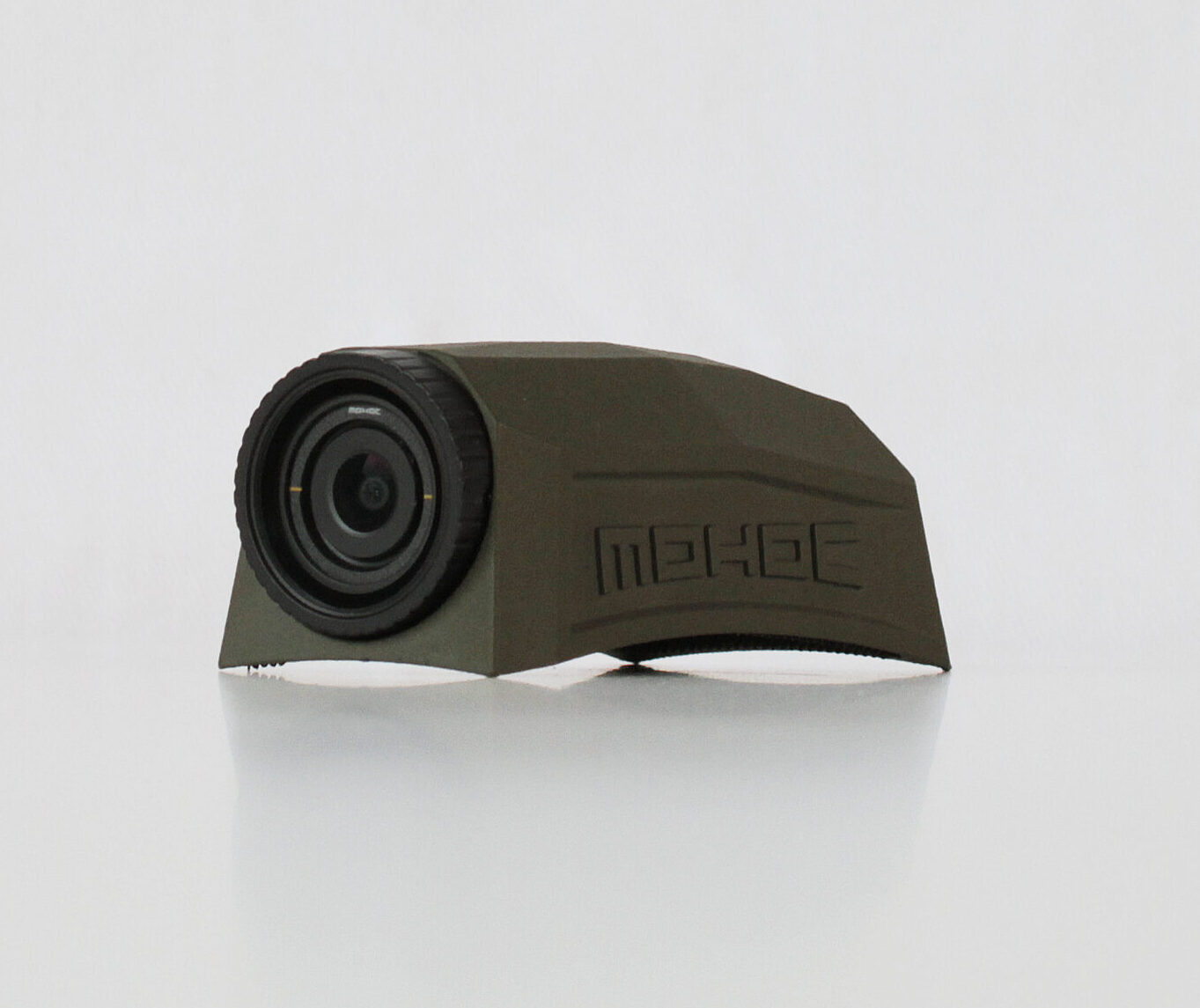

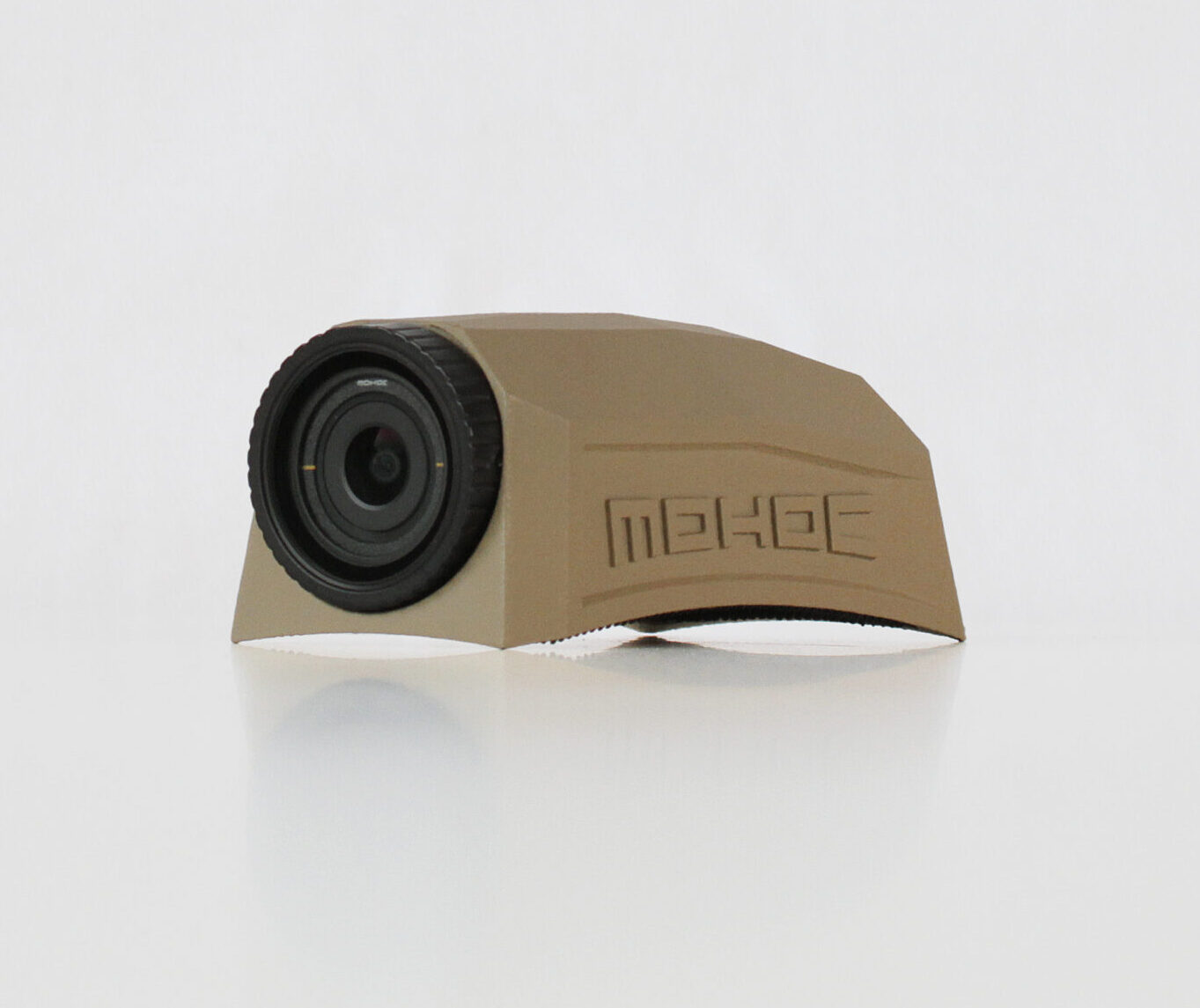

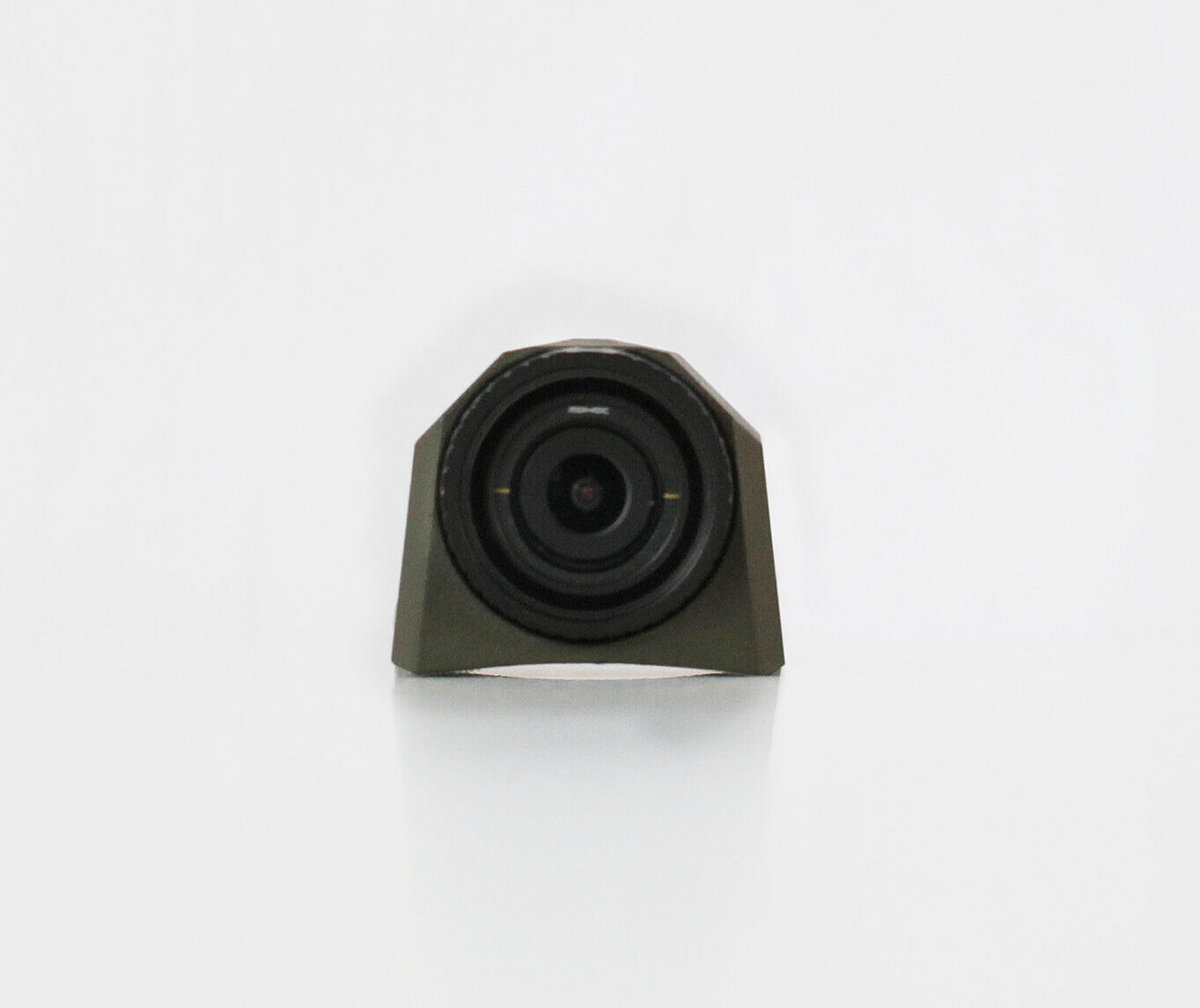

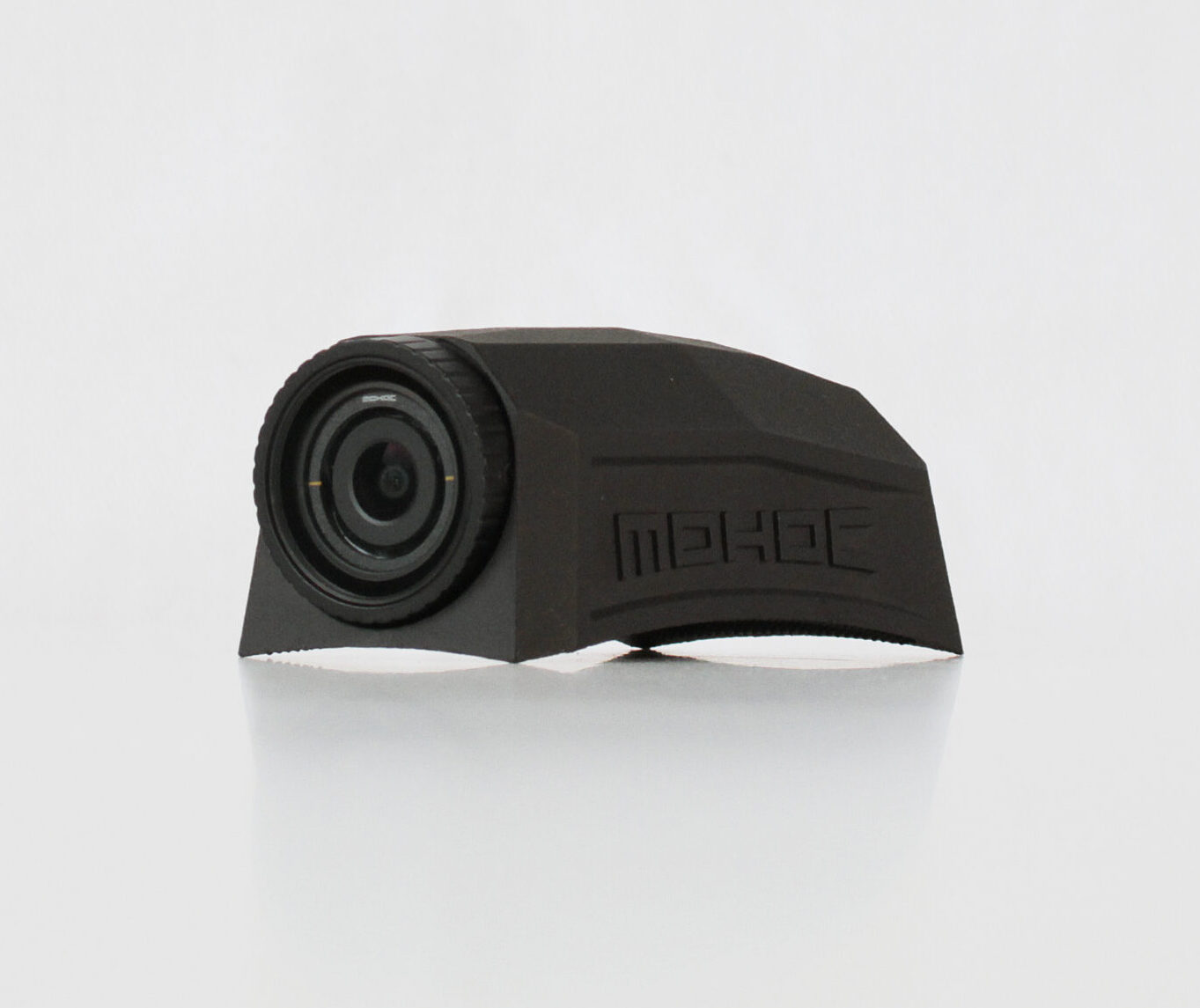

All MOHOC® 2 cameras are available for purchase in Black, Tan, and MIL Green.

MOHOC® 2 cameras are built to order, so estimated lead time is 30 days after receipt of order.  MOHOC Customer Service will be in touch after your order to confirm color, connected device compatibility, and estimated lead time.

MOHOC 2 USB-UVC Spec Sheet

SKU: MH2USB Category:


ALL-NEW MOHOC® 2 USB-UVC
SITUALTIONAL AWARENESS AT THE TACTICAL EDGE


OUTPUT MJPEG: 1080/720p
RESOLUTION Max. 1080P (1920 x 1080)
FPS Max. 25/30fps (50/60Hz)
CONNECTION Gleniar 807 or Standard USB cable
EXPOSURE Auto
WHITE BALANCE Auto
GAIN CONTROL Auto
POWER USB 5V, Consumption: Max. 180mA@DC5V
SUPPORT Windows, Linux, Mac, Android, etc.

USB-UVC VIDEO GENERAL SPECIFICATIONS

IMAGE SENSOR 1/2.8” Color CMOS (back illuminated pixels for ultra-low light)
MIN. ILLUMINATION 0.006Lux @F2.0
OPTICS/LENS Aperture F2.0, 120º Field of View
SCANNING SYSTEM Progressive Scan
ELECTRONIC SHUTTER 50Hz : 1/25~25,600sec 60Hz : 1/30~1/30,000sec
DURABILITY 2m (6.5ft) drop test
WATERPROOF IP50 standard connectors, IP68 (Glenair 807) connectors optional
POWER REQUIREMENT USB 5V, Consumption: Max. 180mA@DC5V
LOW LIGHT Auto adjustment for optimal recording in low light environments
ROTATING LENS Manually rotate lens up to 190º to record horizontal video from any mounting position
SECURE ATTACHMENT CurvelockTM base designed to match helmet curvature, provides unprecedented low-profile, secure attachment via Velcro® direct to helmet or helmet cover
OPERATING TEMP. 14ºF~131ºF (-10ºC~+55ºC)
DIMENSIONS 80mm (3.2in) long x 41mm (1.6in) wide x 32mm (1.2in) tall
WEIGHT 71grams (2.5oz)

US Pat no. 10,802,379
MOHOC 2 USB-UVC Spec Sheet

(1) MOHOC® 2 USB-UVC Camera
(2) Industrial Strength Black VELCRO® Brand Loop Strips
(1) Camera bag
